Woodworking Industrial Planer Machinery Tools Parts Cutter Head Jointer Carbide Inserts Cutterhead for Wood Thicknesser

Tags: cutter head DH Spiral Cutter Head for 24" Planer Wood Planer Cutter Head With Inserted Carbide Knives Cutter Woodworking Jointer Spiral Cutterhead Wood Helical Spindle Moulder Shaper Spiral Head Planer

Price: $95.000

DETAILS

Product Introduction

* OEM & ODM Acceptable

	Material	Working Diameter(mm)	Wing(T)

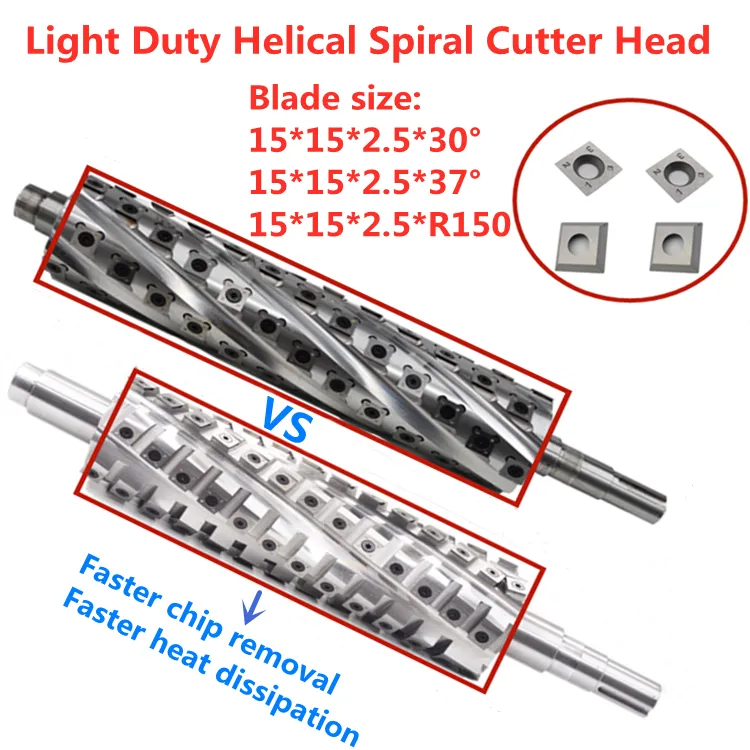

Light Duty Helical Spiral Cutter Head	Steel	45-55	3/4/5
		45-55	4/5/6
		80-100	6
		110-125	6-8
Heavy Duty Helical Spiral Cutter Head	Steel	55-72	3/4
		75-90	4-6
		100	6
		125	6

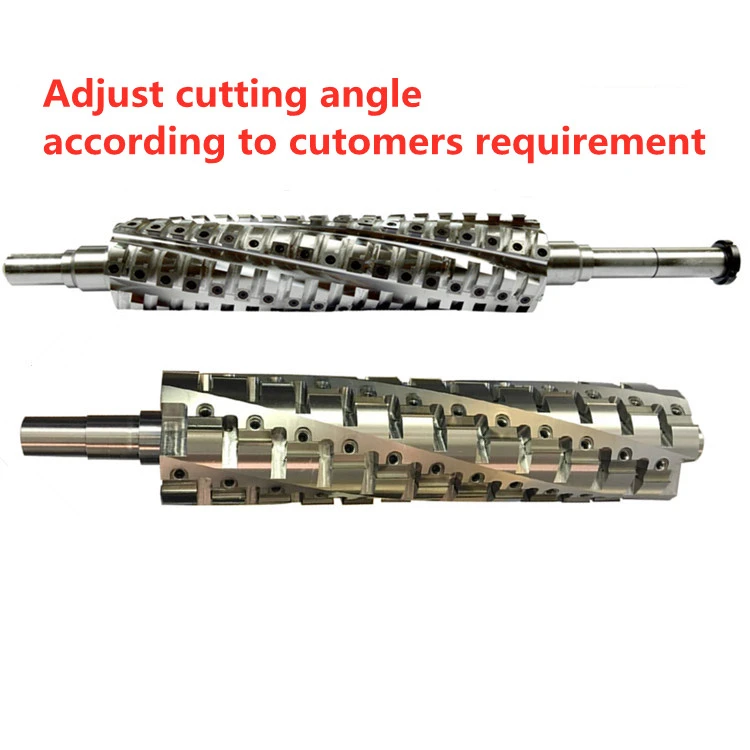

Other specifications can be customized

Possible Problems & Solutions

PROBLEM: Planed boards have uneven patches

REASON①: The machine speed is not enough

For a helical spiral cutter head with a diameter of 75-125mm, the machine speed needs to be 5,000-12,000 rpm; The larger the diameter of the helical spiral cutter head, the smaller the machine speed required; In addition, the spindle speed of the helical spiral cutter head using tungsten carbide inserts would more higher than that of high speed steel inserts.

SOLUTION①: Use a traditional cutter head with insert straight high speed steel planer blades instead of a helical spiral cutter head with insert carbide blades

PROBLEM: Planed boards have striped unevenness

REASON①: There is chipping of the insert blade in the circumferential area of the cutter.
SOLUTION①: Replace the broken insert blades.

REASON②: There is a drop in the insert blade in the annular part of the cutter.
SOLUTION②: First check whether there is a loose blade in the annular part of the cutter; if there is no loose blade, it means
there is a drop in the blade; We need to remove all the blades in the ring part first and clean the wood ash on these blades;
After cleaning, change the cutting edge of the insert blades and reinstall it.
